6SP 40 high lift multistage fresh water pump
Speed: 2850 Outlet/Outlet: G3 "~ G4"
Classification:
Keywords:
Product Parameters

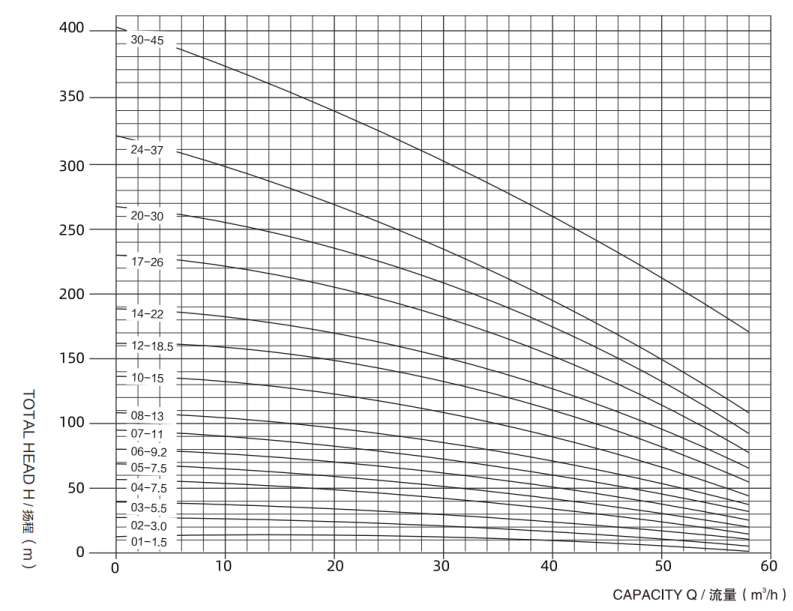

Performance Table: rpm/Speed: 2850 Outlet/Outlet: G3 "~ G4"
| Type | Motor power | Capacity and head | ||||||||
| 50Hz | ||||||||||
| l/min | 0 | 333 | 500 | 666 | 750 | 833 | Length | |||
| KW | Hp | m3/h | 0 | 20 | 30 | 40 | 45 | 50 | mm | |
| 6SP40-1 | 1.5 | 2 | Head (m) | 13 | 12 | 10 | 9 | 8 | 7 | 329 |
| 6SP40-2 | 3 | 4 | 26 | 25 | 21 | 18 | 16 | 13 | 411 | |
| 6SP40-3 | 5.5 | 7.5 | 40 | 37 | 32 | 27 | 25 | 20 | 517 | |
| 6SP40-4 | 7.5 | 10 | 53 | 50 | 43 | 36 | 32 | 28 | 599 | |
| 6SP40-5 | 7.5 | 10 | 67 | 63 | 54 | 46 | 41 | 35 | 681 | |
| 6SP40-6 | 9.2 | 12.5 | 80 | 74 | 65 | 55 | 49 | 42 | 763 | |
| 6SP40-7 | 11 | 15 | 94 | 88 | 75 | 64 | 57 | 50 | 845 | |
| 6SP40-8 | 13 | 17.5 | 107 | 100 | 86 | 73 | 65 | 56 | 927 | |
| 6SP40-10 | 15 | 20 | 134 | 124 | 107 | 91 | 82 | 70 | 1091 | |
| 6SP40-12 | 18.5 | 25 | 161 | 148 | 129 | 109 98 | 85 | 1255 | ||
| 6SP40-14 | 22 | 30 | 188 | 173 | 151 | 127 | 115 | 99 | 1419 | |
| 6SP40-17 | 26 | 35 | 228 | 210 | 184 | 154 | 140 | 120 | 1665 | |
| 6SP40-20 | 30 | 40 | 268 | 247 | 216 | 181 | 164 | 142 | 1911 | |
| 6SP40-24 | 37 | 45 | 322 | 297 | 259 | 217 | 198 | 170 | 2239 | |
| 6SP40-30 | 45 | 60 | 403 | 370 | 322 | 270 | 248 | 212 | 2731 | |
